Media Wall and Niche TV Installation in Santa Ana
TV Mounting Frame Santa Ana covers TV installation on the media walls and in the recessed niches of Santa Ana — new infill homes, remodeled living rooms and loft-style conversions where the screen sits in a shallow recess or between built shelves — with a solid board behind the screen and a plan for the cables.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration

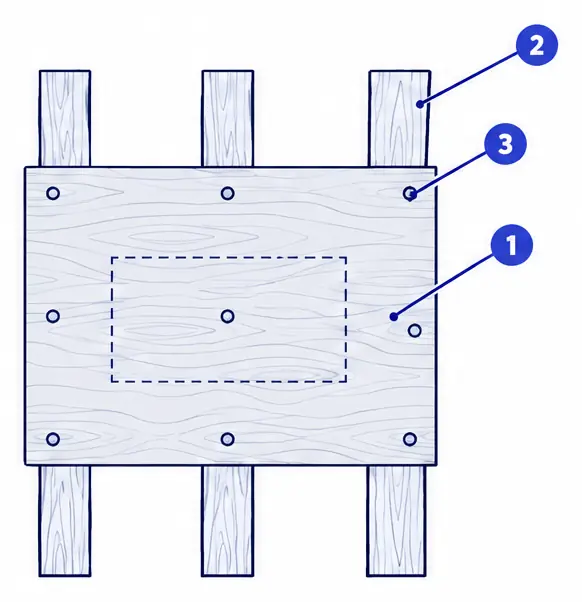

A backer board behind the niche
A plywood panel screwed across the studs before the drywall goes on gives the plate solid wood anywhere on the wall, so a screen can move or be replaced later. In a remodel with the wall open, adding the panel costs little; once the drywall is up, the studs are found with a finder.
What the numbers show
- Plywood backer A large panel across the studs holds a bolt wherever the TV needs to go.
- Studs The panel is screwed to every stud it crosses.
- Panel screws A row of screws at each stud keeps the panel flat and tight.
Niche depth and room to breathe
A recess has to be deep enough for the TV, the bracket and the plugs, and wide enough that the picture is not crowded. The installer measures the set and the mount before the depth is fixed, and leaves a gap above the gear so heat can leave.
| Measure | Why |
|---|---|
| TV depth with the bracket | Fits the recess without pressing the plugs |
| Width and height with a gap | Leaves room to tilt and to lift the TV out |
| Space for the gear | Boxes need air |
Cables in the open wall
With the wall open, a conduit or a pair of rated plates can be placed behind the niche for the HDMI and power runs. A pull string in the conduit makes later changes easy. Standard power cords are never run inside a wall; power uses an in-wall rated kit or an outlet placed by an electrician.
Media Wall & Niche TV Installation — common questions
Does a niche need a backer board?
It helps where the TV may move later, since the board gives the plate solid wood across the wall.
Can a TV tilt inside a niche?
Only if the recess is deep and wide enough; the installer measures the swing before the mount is chosen.
